Descriere

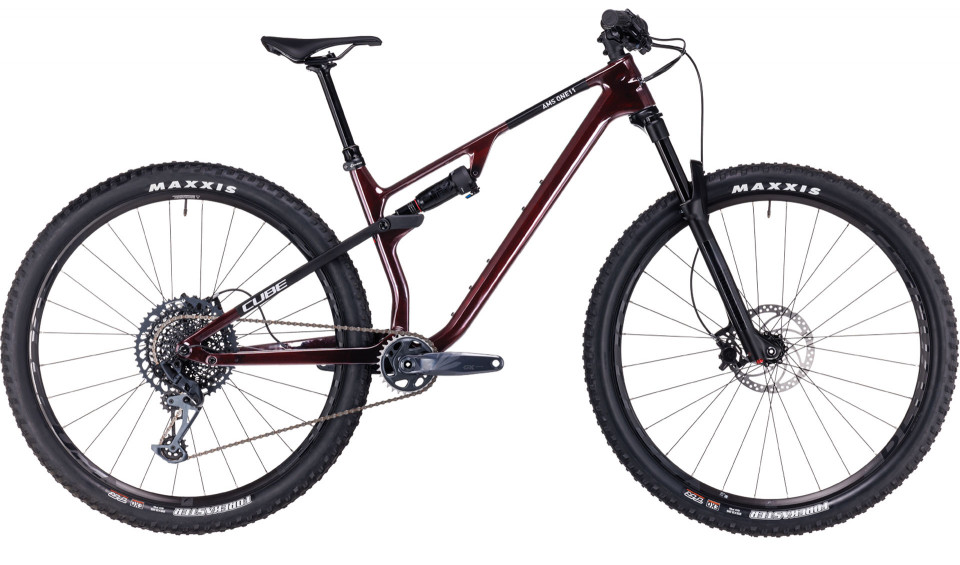

Bicicleta Full Suspension CUBE ONE11 C:68X PRO 29 LIQUIDRED CARBON 2023
RAISE YOUR GAME
When we set out to build the ultimate lightweight trail bike, we began with our best-in-class C:68X® carbon lay-up. With slender tube profiles, fastidious design and exhaustive testing, we finished with a frame that weighs around 1600g. Designed around 444mm chainstays with clearance to comfortably run 2.4in tyres, there's even an Acros angle adjustment insert to allow fine-tuning of the head angle. 110mm of rear-wheel travel and 120mm up front – combined with the agility of a super-responsive frame – is a potent combination for dissecting even the trickiest sections of trail. Raise your game. Ride AMS ONE11 C:68X.
FAST, LIGHT, NIMBLE AND SURPRISINGLY HARD-HITTING: THE AMS ONE11 C:68X PRO 29 IS THE BIKE THAT CAN DO IT ALL. FROM XC RACING TO FAST TRAIL RIDING AND EVERYTHING IN BETWEEN, ITS ADVANCED CARBON CHASSIS AND CAREFULLY SELECTED COMPONENTS MAKE THIS A FAST AND FUN WAY TO GET FROM A TO B OFF-ROAD.
The trail won't know what hit it. The AMS ONE11 C:68X Pro 29's super-light carbon chassis with around 110mm of rear and 120mm of front wheel travel puts you firmly in control. A RockShox Recon Gold fork pairs with a Deluxe Select+ shock to take care of the bumps. Sram's wide-ranging and slick-shifting GX Eagle 1x12 gears get your power to the trail via Maxxis Forekaster 2.35in tyres on Fulcrum Red77 wheels. And Magura MT Thirty hydraulic disc brakes keep your speed in check – because power is nothing without control, right?
C:68X CARBON FUBER TEHNOLOGY
Combining all our expertise from carbon frame building into the ultimate material, C:68X® carbon uses the optimum blend of fibre and nano particle-infused resin. Precision Advanced Twin Mold manufacturing means we can avoid bonded sleeves or inserts, too. It's the new benchmark for light, stiff and strong.
ADVANCED TWIN MOLD
With our Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
ADJUSTABLE HEADSET ANGLE
When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
UNIVERSAL DERAILLEUR HANGER
One standard for all: gear hanger replacement made easy thanks to the innovative Universal Derailleur Hanger. With a design that includes some room for pivoting to help prevent chain jams, it improves shifting performance and works with all drivetrains. Best of all, it's a standard part that is available anywhere.
FSP4LINK
Suspension kinematics is vital to your bike's performance. At CUBE we use the FSP 4-Link for all our full suspension bikes, with a chainstay pivot and four bar suspension design. It's a proven method for creating active rear wheel travel independent of pedalling or braking forces. We carefully refine pivot placement for each bike depending on its intended use, so you can be sure of outstanding suspension performance on the trail.
SPECIFICAȚII TEHNICE
TRANSMISIE
1x12 viteze
CADRU
C:68X® Monocoque Advanced Twin Mold Technology, FSP 4-Link, Boost 148, UDH™
SUSPENSIE CADRU
RockShox Deluxe Select+, 190x42.5mm
FURCĂ
RockShox Recon Gold RL Air, Tapered, 15x110mm, 120mm
CUVETĂRIE
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for 0.6° Angle Adjustment
PEDALIER
Butuc: Sram DUB MTB, 92mm Pressfit, Angrenaj: Sram GX Eagle™ Boost DUB, 30T
PEDALE
PINIOANE
Sram XG-1275 Eagle™, 10-52T
LANȚ
Sram SX Eagle™
SCHIMBĂTOR SPATE
Sram GX Eagle™, 12-Speed
SCHIMBĂTOR FAȚĂ
MANETE SCHIMBĂTOR
Sram GX Eagle™ Trigger
MANETE FRÂNĂ
FRÂNE
Magura MT Thirty, Front/Rear 2-Piston,
ROTOR
Hydr. Disc Brake (180/180)
ANVELOPE
Maxxis Forekaster, EXO, Tubeless Ready, 2.35
JANTE
Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
BUTUC FAȚĂ
Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
BUTUC SPATE
Fulcrum Red 77, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
MANȘOANE
SDG Thrice
PIPĂ GHIDON
Newmen Evolution SL 318.4, 31.8mm
GHIDON
Newmen Evolution 318.20, 760mm
ȘA
Natural Fit Nuance
TIJĂ ȘA
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm, Colier: CUBE Screwlock, 34.9mm
GREUTATE
12.5 kg
ACCESORII
