Cuvetarie XLC Comp A-headset HS-A08 EC34/28.6 EC34/30
Descriere

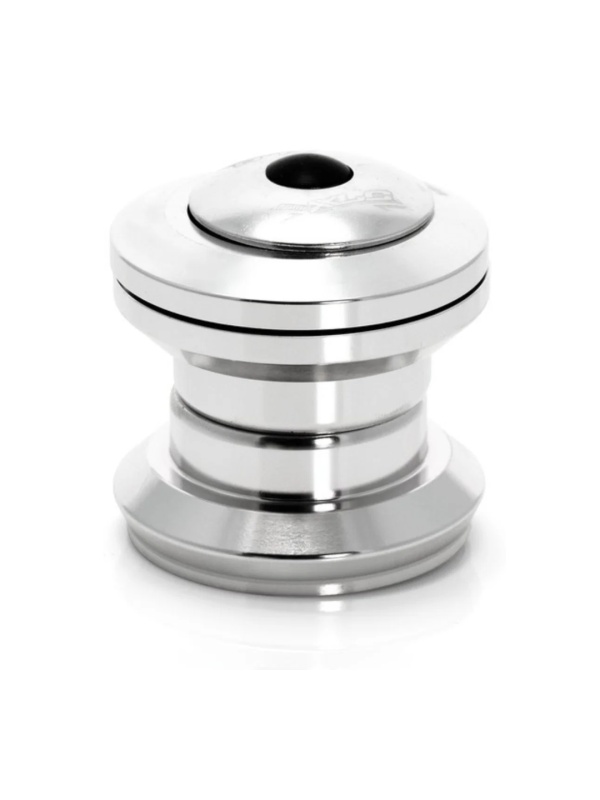

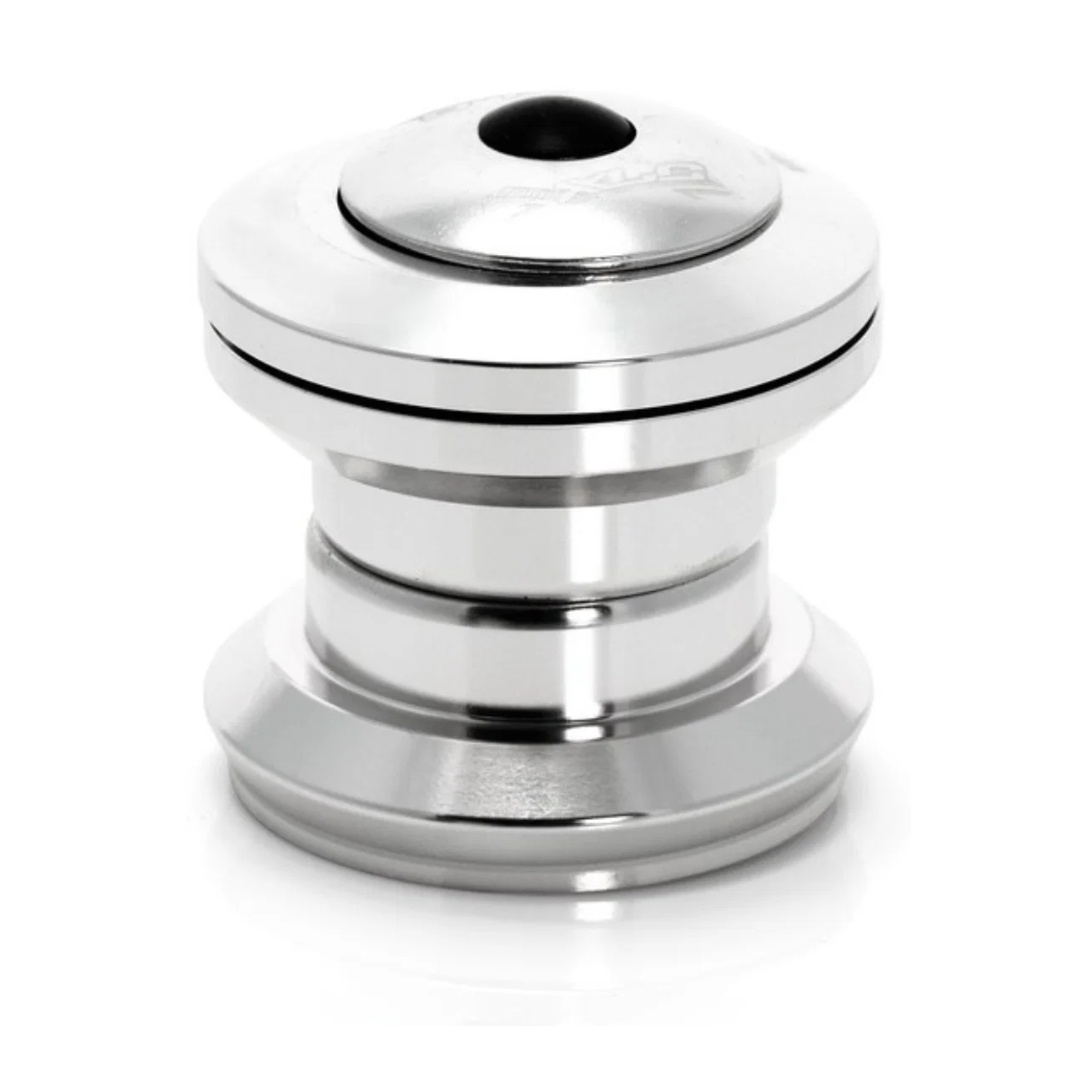

Cuvetarie XLC Comp A-headset HS-A08 EC34/28.6 EC34/30
The headset is a pretty well-concealed component, but it is integral to the functioning of your bike and takes a lot of abuse when out riding. If you ride the same bike for a long period of time through all seasons and conditions, the chances are you'll need to replace the headset at some point, and the XLC Comp A-Head Headset HS-A08 should get the job done.
This unit is designed to fit a steerer tube with a diameter of 1.1/8" (28.6mm) – pretty standard – and its dimensions come to 27.2mm in total – that's 15.4mm for the top section and 11.8mm for the bottom. The headset cone is 30mm and is compatible with a frame diameter of 34mm.
Manufactured from sturdy and hard-wearing aluminium, the XLC Comp A-Head Headset HS-A08 with cartridge bearings comes in black or silver so you can maintain colour consistency throughout your bike’s components.
- External Aheadset
- Aluminium cups and steel race
- Cartridge bearings
- S.H.I.S. EC34/28.6 EC34/30
-
Other
- Weight: 141 gram
- Bearing: cartridge, sealed
- Brand: XLC
- Cone diameter (mm): 30
- Delivery contents: headset (7-part)
- Frame diameter (mm): 34
- ICONS: 1 1/8 inches 1 1/8 inches headsets are compatible with 1 1/8 inches steering tubes (outer Ø of the tube: 28.6mm) Cartridge bearing Cartridge or cartridge bearing are today’s most used bearing types in bicycles. All necessary rolling bearings are inserted, adjusted and pressed into a so-called cartridge by the manufacturer. Thus, bearings are well protected against dust and dirt and when mounting, the bearings do not have to be adjusted. They are therefore completely maintenance-free. A-head set In A-headset systems, the stem is fastened to the steering tube from outside. The steering tube does no longer need a thread, this giving the fork manufacturers the possibility of producing steering tubes with thinner walls and to use other materials, e.g. carbon. Hence, the A-headset system offers a weight advantage and facilitates assembly.
- Identification: classic EC34/28.6 EC34/30
- Model identifier number: HS-A08
- Installation height (bottom) (mm): 12
- Installation height (top) (mm): 16
- Installation height (total): 28
- Color / Decor: silver
- Material:
- · aluminium
- · steel
- Type: A-head
