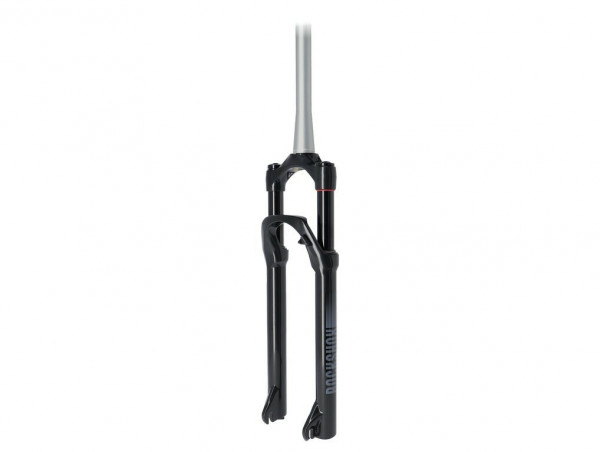

Furca suspensie RockShox Judy Gold RL 100mm SA 29" 1.5 tap, 9QR, 51 off, disc, A3

Descriere

Furca suspensie RockShox Judy Gold RL 100mm SA 29" 1.5 tap, 9QR, 51 off, disc, A3

Specifications:

Application: Cross Country, All Mountain
Wheel Size: 29"
Suspension Type: air
Travel: 100 mm, 120 mm
Steerer Tube: 1 1/8" , 1 1/8" - 1.5" tapered
Axle Type: quick release (9 x 100 mm)
Brake Mount: disc PM6 (direct mount 160 mm)

Technical Information:

Offset: 51 mm
Steerer Tube Length: 265 mm
Steerer Tube Diameter (Stem): 28.6 mm
Steerer Tube Diameter (Crown Race): 30 mm (1 1/8" ), 40 mm (1 1/8" - 1.5" tapered)
Axle to Crown: 507 mm (100 mm), 527 mm (120 mm)
Over Locknut Dimension: 100 mm
Stanchion Tube Diameter: 30 mm
Steerer Tube Material: aluminium
Crown Material: aluminium
Stanchion Tube Material: aluminium
Lower Tube Material: magnesium

Adjustment Options:

Compression: low-speed to lock
Rebound: yes
Suspension Stiffness: air pressure adjust
Remote: yes (OneLoc)
Travel Adjustment: no

Approved For:

Tyre Size (max.): 29 x 2.5"
Note: For individual tyres, the tyre clearance must be checked with the fork fully compressed. It should be at least 6 mm measured from the fork crown.
Rotor Size (max.): 185 mm

Factory number: 00.4020.556.022
