Suspensie spate RW Monarch RT3 BLK, 197X54/7.75x2.125",MReb/MComp,DA

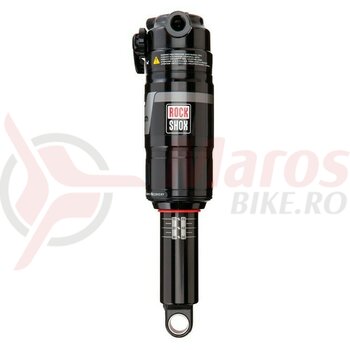

ROCKSHOX damper Monarch RT3 DebonAir for Trek

With the Monarch RT3, the rear wheel is kept on the ground even on the worst stretches, thus ensuring traction. The damper is available with three different settings from the factory. These adjustments are based on the gear ratio of the rear end and thus determine the spring behavior of the rear wheel. Depending on the concept of the rear end construction, a degressive, linear or progressive behavior can be achieved.

The damper can be adapted to your own preferences using a variety of setting options. The spring characteristic can be adjusted via the air pressure of the positive and negative chambers, with both chambers being filled via a valve (Solo Air). The rebound stage (DFA) is also adjustable and also has a two-stage design. This means that the damper reacts extremely quickly to small impacts while larger bumps or even kick-offs are more strongly dampened. The damper also has an external control of the pressure stage. This is divided into three modes (Open / Pedal / Lock) and can thus be optimally adapted to the respective driving conditions.

A black coating on the stanchions, which is now known from RockShox Top forks, not only rounds off the overall look of the damper, but also effectively reduces frictional resistance.


Dual flow adjust

DFA uses independent dual damping circuits to effectively absorb strong shocks and small bumps.


Rapid recovery

A special shim stack inside the damper optimizes the function of many hits in quick succession. The damper returns to its starting position more quickly - the ground contact is increased and the notorious sagging is prevented.


DebonAir

An increase in the volume of the positive and negative air chamber results in a more linear, softer response and a 30% lower breakaway torque compared to its predecessor.


The damper is specially designed for the Trek frames listed on offer and is not compatible with other frames. The damper eyes and the sockets included in the scope of delivery are only matched to the current bike models!


Technical specifications:

Application: Cross Country to Trail
Material shaft / housing: forged 7075 aluminum
Spring: Solo Air negative and positive air chamber adjustable via a Schrader valve
Damping compression level: adjustable via 3-level Floodgate (open to blocked), mid compression
Rebound damping: Dual Flow two-stage rebound, freely adjustable, mid rebound
Extra: say indicator
Color: Black

Weight: 215 g at 165 mm length (without sockets, manufacturer information)
